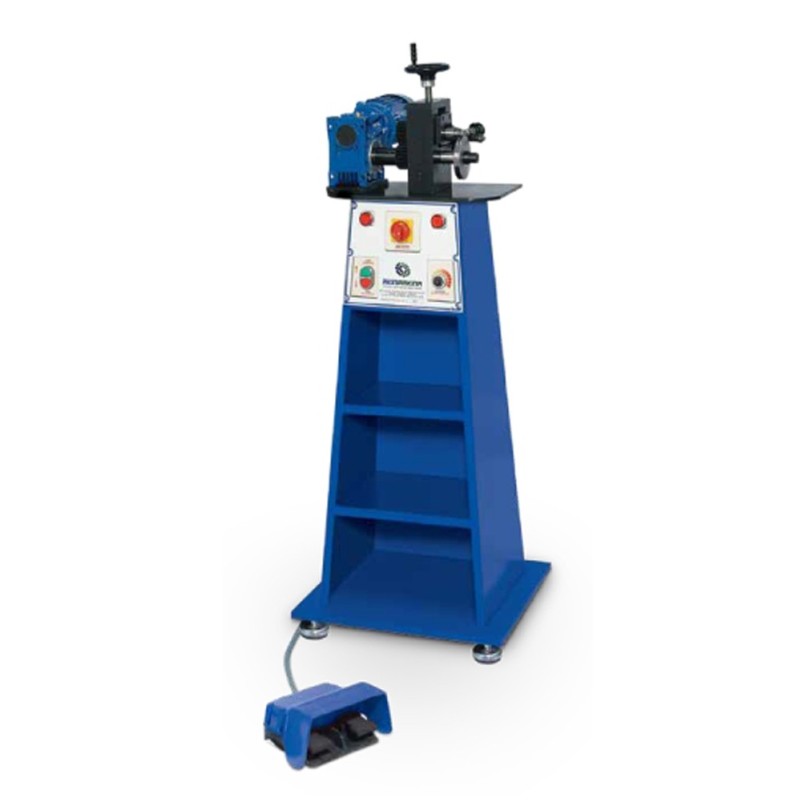

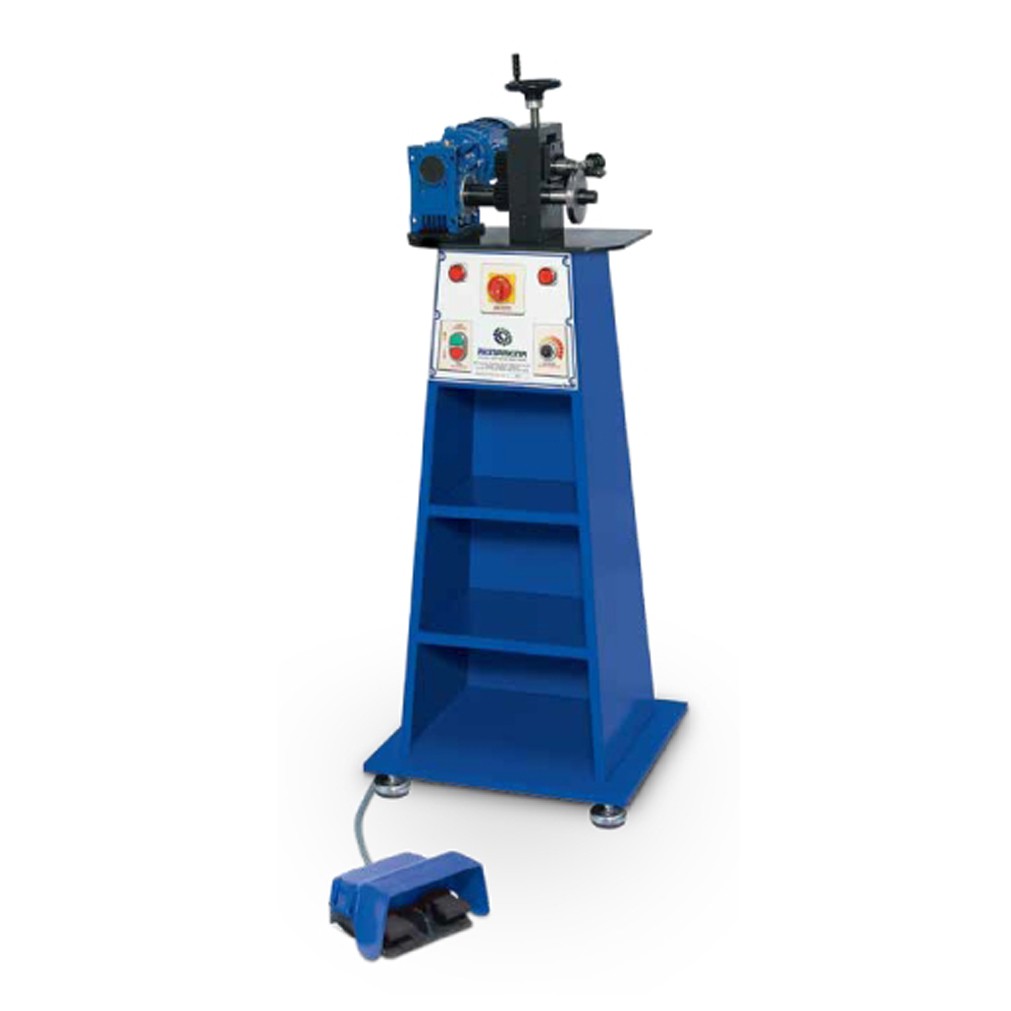

Profile Roll Winding Machine - AKN-PTS

The Profile Roll Winding Machine enables the production of open ended bracelets, earrings, and rings. Its adjustable rotation speed allows for precise craftsmanship at low speeds and high-speed mass production. With spools of varying sizes and designs, it can rapidly manufacture customized products. Depending on the dimensions and designs of the spools used, production can be achieved with base thicknesses ranging from 0.10mm to 0.50mm and widths between 3mm and 45mm.

Technical Specification
Height 1210 mm
Width 450 mm
Depth 500 mm
Weight 130 kg
Power 0.37 kW
Rpm 1400 d/d
Speed Control 0 - 60 Rpm

Machine's Video

Machine's Tool

What Machine Can Make?
